The Kalmar Electric Empty Container Handler ECG90-110 is an advanced solution offering flexible battery and charging options, eco-efficiency, and an ergonomic, quiet driving experience.
More choices for your empty container handling requirements
Our range of electrically powered empty container handlers provides various lifting heights and capacities, along with different battery sizes and power levels to meet your specific operational needs.
With these more choices, you can design a container lifting machine that is tailor-made for your business requirements, ensuring you benefit from the highly energy-efficient power and hydraulics system. Furthermore, Kalmar empty container handlers are equipped with an array of standard safety features, contributing to a safer working environment for your team. The electric empty container handler produces no CO2 emissions during operation, supporting your transition to a low-carbon future. With Kalmar, you can expect exceptional performance, efficiency, and sustainability.
More choices of lifting capacities for single and double stacking of empty containers
Kalmar single container stackers can place empty containers from 5 to 8 high and are available with two different lifting capacities: 9 tonnes (19,800 lbs) and 10 tonnes (22,000 lbs).
Single stackers can pick, lift and stack a wide variety of empty containers:
- 20’, 30’ or 40’ containers picking up in the 20’, 30’ or 40’ position
- 45’, 48’ or 53’ containers picking up in the 40’ position
- Lifting options from 5 to 8 high.
Kalmar double stacking empty container handlers can pick, lift and stack containers 5+1 to 8+1, and you have a choice of two different lifting capacities: 10 tonnes (22,000lbs) or 11 tonnes (24,250lbs).
Double stackers can also lift a wide variety of empty containers:
- Single or double 20’, 30’ or 40’ containers picking up in the 20’, 30’ or 40’ position
- 45’, 48’ or 53’ containers picking up in the 40’ position
- Lifting options from 5+1 to 8+1.
More battery sizes to choose from for your empty handlers

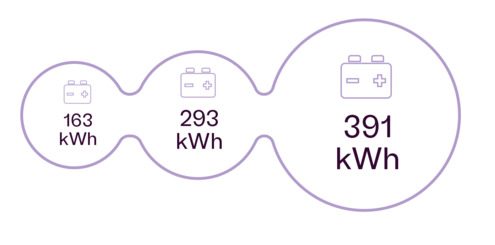

There are three different modular Lithium-ion battery options available, each offering a range of operating times. The ideal choice for your operations will depend on your driving cycle.
By evaluating factors such as load types, operating time, idle time, and the potential for opportunity charging during shifts, you can determine the most suitable battery solution for your business. Depending on your operational needs, you can choose from three types of batteries:
More charging options to keep your empty container handler going

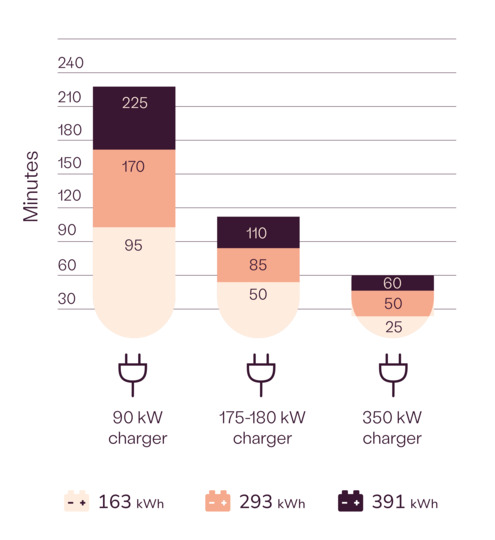

Kalmar offers three different battery charging options, all compatible with CCS2 charging systems and supporting a maximum input of 350 kW. The figures on the chart are based on the time needed to fully charge your Lithium-ion battery from a remaining charge of just 20%. A 90 kW charger is ideal for use after a shift, while a heavy-duty 350 kW charger is perfect for quick top-ups during breaks or between shifts. The best choice for you will depend on your driving cycles and work schedules.
Technical information
| Ficha técnica | Kalmar Electric Empty Container Handler ECG90-110 Specifications |
|---|---|
|
Opções de cabine
|
EGO (high or low) |
|
Stacking height
|
max 8 / 8 + 1 |
|
Motor
|
BoschRexroth traction motor 115/24 kW |
|
Transmission
|
BoschRexroth 1 speed |
|
Battery
|
Li-Ion 3 options 163 kWh-391 kWh) |
|
Models
|
Single & Double stacking |
Even more efficient
To maximise your energy usage, every Kalmar Electric Empty Container Handler is equipped with highly efficient hydraulic pumps, transmission, motor, and inverter. These components work together to extend your operating time between charges, improve battery lifetime, optimise your return on investment, and minimise your carbon footprint.
In addition, Eco Drive modes offer you choices from three power levels, while regenerative energy from the braking system further enhances battery performance and extends its operating life.
Expect more comfort from the electric empty container handler
Every electric empty container handler in our range comes equipped with our EGO cabin, offering the ultimate operating environment for your drivers. With a more ergonomic design, smarter functions, and a more intuitive workspace than ever before, you can expect increased productivity from your operators. Additionally, your operators will be pleasantly surprised by how quiet this electrically powered empty container handler is.
Even more safety for container handling operations
At Kalmar, the safety of people working with our machines is always our top priority, which is why meeting global safety standards is crucial to us. The updated safety standard EN 1175:2020, which sets the electrical and electronic component requirements for industrial trucks, aims to improve the safety of these machines during operation. This update is effective from April 2023. All Kalmar container handling machines (counter balanced machines), including reach stackers, empty container handlers, top picks, and forklifts, have been updated to meet this new standard. This ensures that working with a Kalmar container handler is as safe as possible at all times.
Kalmar Services: keep every move counts
To keep your electric empty handler operating at its best, Kalmar offers a comprehensive range of services designed to support your equipment, including:
- Kalmar Care: A flexible range of service packages tailored to your specific needs.
- MyKalmar INSIGHT: Our digital performance management tool for container handling equipment.
- MyKalmar STORE: Your one-stop shop for Kalmar Genuine Parts.
- MyKalmar portal: Convenient access to all of Kalmar’s digital services on a single platform.
With these services, your Kalmar container handler and other container handling machines can consistently perform at their peak.
